① Characteristics

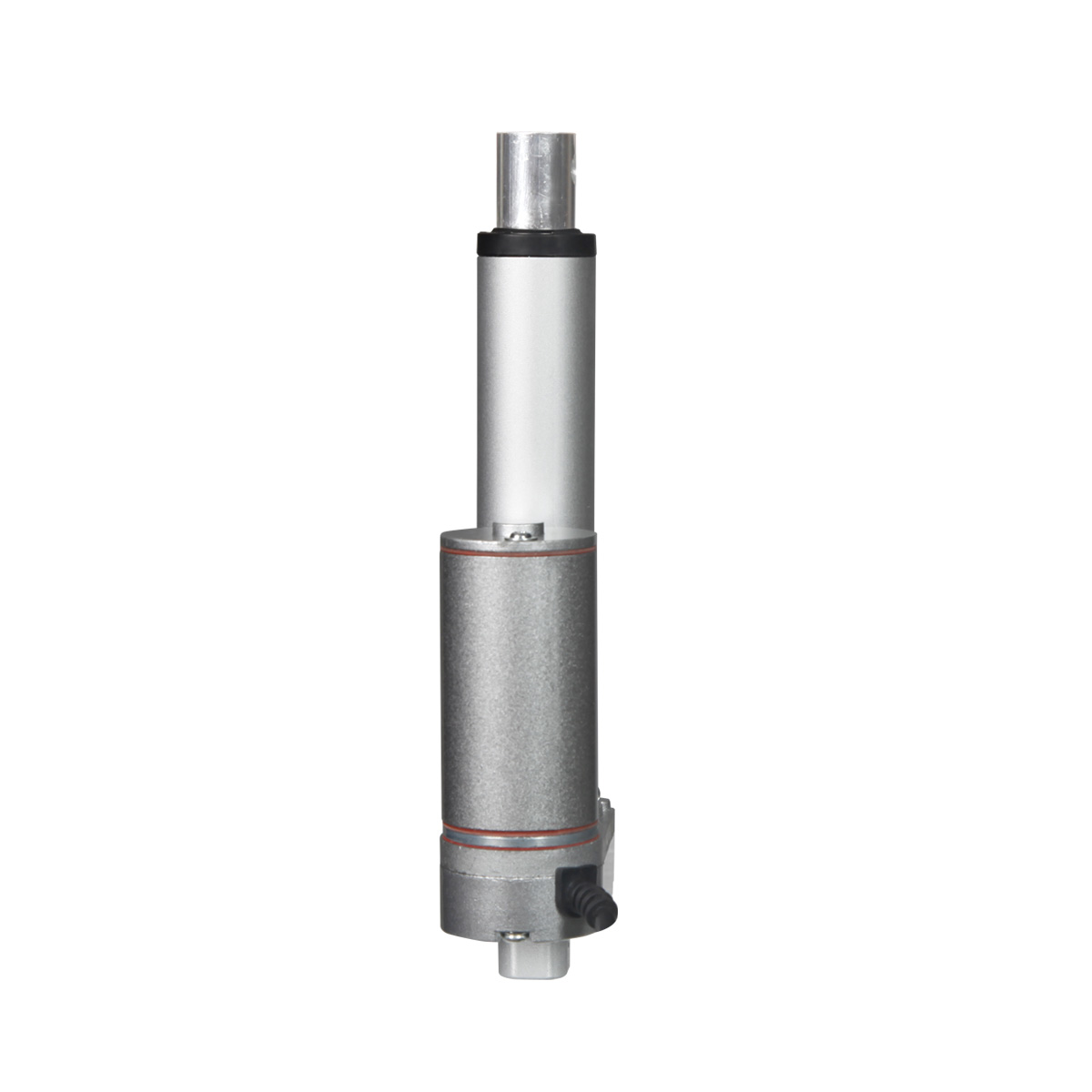

DC linear actuator
Aluminum alloy shell, compact design, light weight, with built-in micro switch to automatically stop after stroke; customized stroke, easy to install, easy to operate; Can replace hydraulic pressure, air pressure and other traditional mechanical push and pull products; widely used in aircraft, ships, luxury car seat back rest
lifting, massage chair massage bed, fire equipment,medical equipment, furniture and other products.
Linear Actuator General TECNICAL DATA:
Voltage 12 V DC, 24V DC, 36V DC, 48V DC
Load Capacity up to 1200N
DC motor length: 73mm, 79mm, 85mm
Standard Stroke 20 ~ 800mm ( Option Upon request )
Max. life cycles: 50000
Duty Cycle 20% or 10%, Max. 2 min ON/18 min OFF
Operation Temperature -20°C~+65°C
IP rating: IP54, IP65, IP67
Able to make customized types.

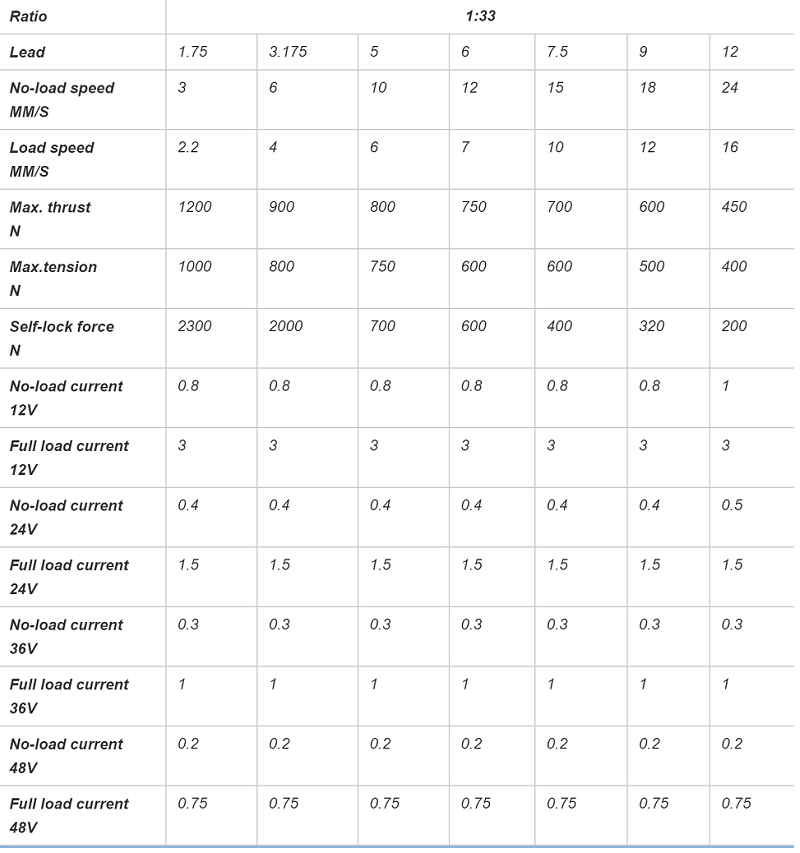

73mm length 38ZY linear actuator specs.:
